I simply want to place a drill hole and tech have explained that I have to reduce the width to the drill size.
They also mentioned resist sizes may need adjusting.

Are there any other precautions/settings needed?

Do I need to start making new pads for all sizes used with new exceptions?

Why is there no simple add a hole on Easy PC?

edrees

United Kingdom
799 Posts

Posted - 31 May 2015 :  12:39:55  Show Profile  Visit edrees's Homepage  Reply with Quote
There is no such thing as a "hole", it is either a non-plated thru pad or a plated thru pad.

If it is plated thru, the manufacturer will require some "meat" (an annulus) around the hole. The more meat the less difficult the manufacturing process. If it isn't plated thru, then there is no requirement for the copper annulus. I suspect that you have specified plated thru holes!

It is difficult to give all the precautions and settings needed for any one specific design.
Go to Top of Page

AndyB

United Kingdom
209 Posts

Posted - 31 May 2015 :  12:55:06  Show Profile  Reply with Quote
Thanks for the reply edrees.

Non plated through hole.

Simply a hole.
Go to Top of Page

AndyB

United Kingdom
209 Posts

Posted - 31 May 2015 :  14:22:51  Show Profile  Reply with Quote
I have selected non plated also "can drill out pad " tab.

Gerbers show that the holes are copper filled.

Is that the norm?




Go to Top of Page

edrees

United Kingdom
799 Posts

Posted - 31 May 2015 :  16:02:45  Show Profile  Visit edrees's Homepage  Reply with Quote
The "Gerbers" won't show whether the pads are filled or not!

The Plot Report file (and possibly separate drill files for plated and non-plated holes) will indicate what are plated thru holes or not depending on your plot setup.

Check the following-
Pad Properties=>Is "Plated" ticked or not?
Plotting & Printing => Drill Data (Through Hole)
Plotting & Printing=>Drill Ident Drawing- Through Hole => Select Hole Types

Non plated thru holes add cost to the pcb as they involve an additional drill operation after the pcb has been manufactured, so the "norm" is to have only plated thru holes.

Go to Top of Page

AndyB

United Kingdom
209 Posts

Posted - 12 Jun 2015 :  22:17:52  Show Profile  Reply with Quote
So would it be cheaper to make a plated hole but drill it out.

quote:
Originally posted by edrees

The "Gerbers" won't show whether the pads are filled or not!

The Plot Report file (and possibly separate drill files for plated and non-plated holes) will indicate what are plated thru holes or not depending on your plot setup.

Check the following-
Pad Properties=>Is "Plated" ticked or not?
Plotting & Printing => Drill Data (Through Hole)
Plotting & Printing=>Drill Ident Drawing- Through Hole => Select Hole Types

Non plated thru holes add cost to the pcb as they involve an additional drill operation after the pcb has been manufactured, so the "norm" is to have only plated thru holes.



Go to Top of Page

Iain Wilkie

United Kingdom
1022 Posts

Posted - 13 Jun 2015 :  09:05:40  Show Profile  Visit Iain Wilkie's Homepage  Reply with Quote
Only if you drill it out yourself. But having said that the saving is negligible, perhaps a few pence per board and sometimes not even that !

In fact if you go to PCB Train, the number of holes be it plated or un-plated doesn't even come into the equation. Cost is simply based on board size and layers.

Iain

Edited by - Iain Wilkie on 13 Jun 2015 09:19:20
Go to Top of Page

Mike Warren

Australia
124 Posts

Posted - 13 Jun 2015 :  11:03:27  Show Profile  Visit Mike Warren's Homepage  Reply with Quote
I do unplated holes all the time, for PCB mounting or alignment pins for connectors. They are just an unplated pad with a hole the size I want and a pad diameter of 0. I've never had a complaint from a PCB supplier or had boards show up with anything wrong with the holes.

The only annoyance is that they show in EPC as a very thin broken line until selected.

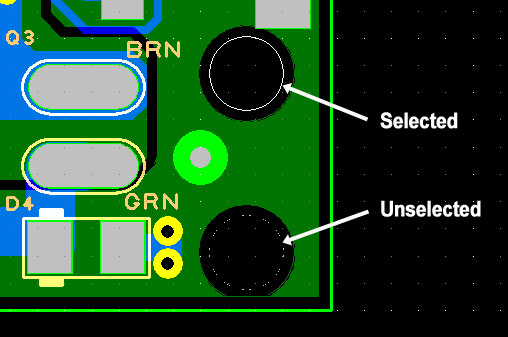

http://mike-warren.net/elect/epc_mounting_holes.jpg

http://mike-warren.net
Go to Top of Page

Iain Wilkie

United Kingdom
1022 Posts

Posted - 14 Jun 2015 :  21:47:55  Show Profile  Visit Iain Wilkie's Homepage  Reply with Quote
Remember you can also change the settings to display non-plated holes as a different colour so you can identify them at a glance in the pcb editor.

Iain
Go to Top of Page

Mike Warren

Australia
124 Posts

Posted - 14 Jun 2015 :  23:56:46  Show Profile  Visit Mike Warren's Homepage  Reply with Quote
I hadn't noticed that and just tried it. It works, but draws the holes as diamond shapes.

http://mike-warren.net/elect/epc_mounting_holes2.jpg

http://mike-warren.net

Edited by - Mike Warren on 14 Jun 2015 23:57:03
Go to Top of Page

Iain Wilkie

United Kingdom
1022 Posts

Posted - 15 Jun 2015 :  08:42:12  Show Profile  Visit Iain Wilkie's Homepage  Reply with Quote
The Diamond shape is great I think as you can spot these holes at a glance .....

Iain

Edited by - Iain Wilkie on 15 Jun 2015 08:42:27
Go to Top of Page

AndyB

United Kingdom
209 Posts

Posted - 19 Jun 2015 :  13:38:56  Show Profile  Reply with Quote
Iain where is this setting?


quote:
Originally posted by Iain Wilkie

The Diamond shape is great I think as you can spot these holes at a glance .....

Iain


Edited by - AndyB on 19 Jun 2015 13:40:48
Go to Top of Page

Iain Wilkie

United Kingdom
1022 Posts

Posted - 19 Jun 2015 :  20:09:39  Show Profile  Visit Iain Wilkie's Homepage  Reply with Quote
Under View/Display/Settings and Highlights

Iain
